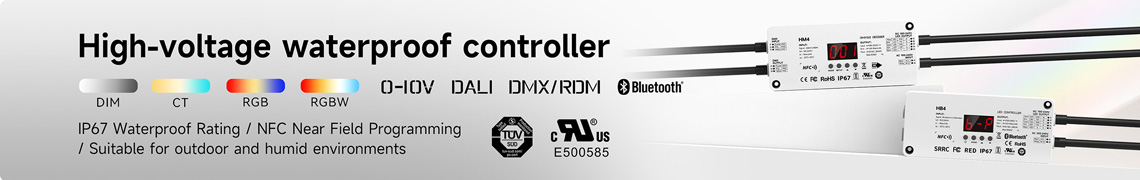

Features four protocol types: DMX, DALI, 0-10V, and Bluetooth 5.0. 4-channel design with NFC proximity programming support. IP67 waterproof rating, suitable for outdoor and humid environments. 0–100% dimming depth with PWM digital dimming that maintains LED color rendering index. Flicker-free operation throughout, compliant with IEEE 1789 high-frequency exemption standards.
| Input signal: | Bluetooth 5.2 SIG Mesh |
| Input Voltage: | 100-240V~ |
| Input current: | Max. 6.4A |
| Output Voltage: | 4x(100-240)V⎓ |
| Output Current: | 4CHx1.6A Max.6.4A |
| Output Power: | 4CHx(0-160...384)W Max. 1536W |
| Working Temp. | -25°C~50°C |
| Dimensions: | L164xW70xH36mm |
| Package Size: | L230xW95xH47mm |
| Weight (G.W) | 670g |
| Waterproof rating: | IP67 |
| Protect: | Short-circuit, over-temperature, and over-current protection |
| Input signal: | DALI-2 |
| Input Voltage: | 100-240V~ |
| Input current: | Max. 6.4A |
| Output Voltage: | 4x(100-240)V⎓ |
| Output Current: | 4CHx1.6A Max.6.4A |
| Output Power: | 4CHx(0-160...384)W Max. 1536W |
| Working Temp. | -25°C~50°C |
| Dimensions: | L164xW70xH36mm |
| Package Size: | L230xW95xH47mm |
| Weight (G.W) | 670g |
| Waterproof rating: | IP67 |
| Protect: | Short-circuit, over-temperature, and over-current protection |
| Input signal: | 0/1-10V |
| Input Voltage: | 100-240V~ |
| Input current: | Max. 6.4A |
| Output Voltage: | 4x(100-240)V⎓ |
| Output Current: | 4CHx1.6A Max.6.4A |
| Output Power: | 4CHx(0-160...384)W Max. 1536W |
| Working Temp. | -25°C~50°C |
| Dimensions: | L164xW70xH36mm |
| Package Size: | L230xW95xH47mm |
| Weight (G.W) | 670g |
| Waterproof rating: | IP67 |
| Protect: | Short-circuit, over-temperature, and over-current protection |
| Input signal: | DMX512, RDM |
| Input Voltage: | 100-240V~ |
| Input current: | Max. 6.4A |
| Output Voltage: | 4x(100-240)V⎓ |
| Output Current: | 4CHx1.6A Max.6.4A |
| Output Power: | 4CHx(0-160...384)W Max. 1536W |
| Working Temp. | -25°C~50°C |
| Dimensions: | L164xW70xH36mm |
| Package Size: | L230xW95xH47mm |
| Weight (G.W) | 670g |
| Waterproof rating: | IP67 |
| Protect: | Short-circuit, over-temperature, and over-current protection |
| Input signal: | DMX512/RDM |
| Input Voltage: | 100-240V~ |
| Output Current: | Max. 1.2A/CH Max. 3.6A(3CH) |
| Output Power: | (83-288)W/CH Max. 864W(3CH) |
| Dimming Range: | 0-100% |
| Working Temp.: | -20°C~50°C |
| Dimensions(L×W×H): | L164×W70×H36mm |
| Package Size(L×W×H): | L193×W127×H41mm |
| Weight (G.W): | 670g |
| Protection: | Short circuit, over temperature, over current protection, auto recovery. |
