15W 100-700mA CC DMX Driver

  • Description
  • Video
  • Download

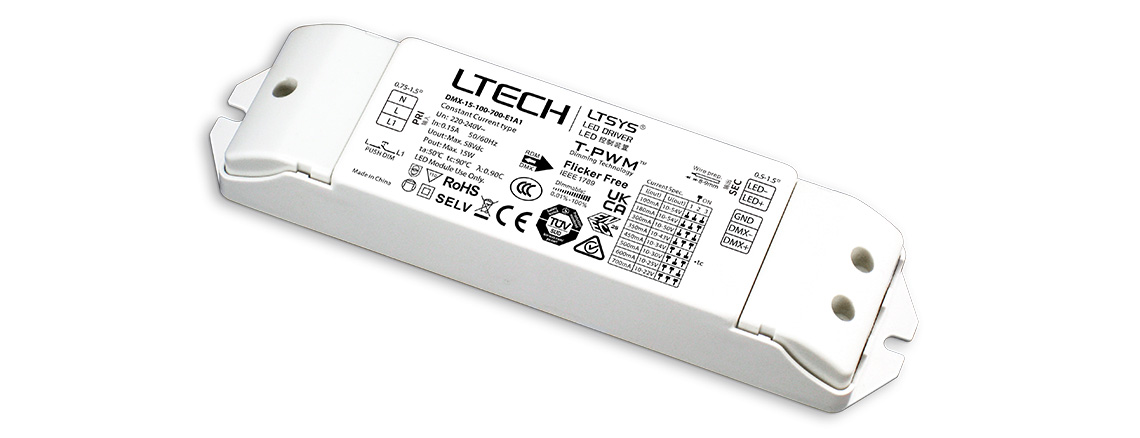

Model: DMX-15-100-700-E1A1
Dimming interface: DMX512/RDM, Push Dim
Dimming range: 0-100%
Input voltage: 220-240Vac ±10%
Efficiency: >83%
Current Accuracy: ±3%
Output voltage: 10-54Vdc
CC output: 100mA-700mA
Sec. output:
Pout(Max.) Vout(DC) Constant lout(DC)
1W-5.4W 10-54V 100mA
1.8W-9.72W 10-54V 180mA
3W-15W 10-50V 300mA
3.5W-15.05W 10-43V 350mA
4.5W-15.3W 10-34V 450mA
5W-15W 10-30V 500mA
6W-15W 10-25V 600mA
7W-15.4W 10-22V 700mA
