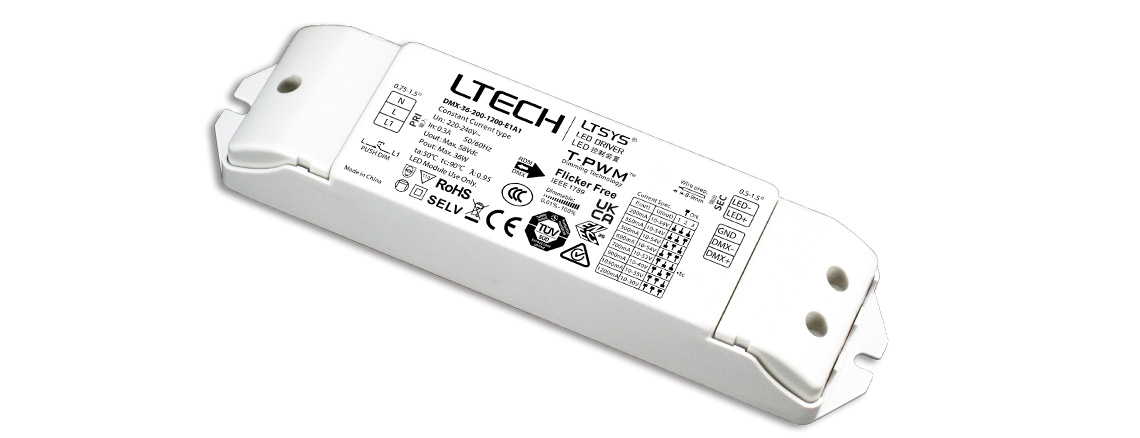

36W 200-1200mA CC DMX Driver

  • Description
  • Video
  • Download


Dimming interface: DMX512/RDM, Push DIM
Dimming range: 0~100%, LED start at 0.1% possible
Input voltage: 220-240Vac ±10%
Efficiency: >87%
Current Accuracy: ±3%
Output voltage: 10-54VDC
CC output: 200mA-1200mA
Output power: 2W-36W
working temperature: tc: 80°C ta: -30°C ~ 55°C
Dimension: 167×39×30mm(L×W×H)
Package Size: 168×41×32mm(L×W×H)
Weight (G.W): 165g±10g
